Pneumatic Riveter
- M8, 2700 RPM
Product Video
Feature Video
General Description

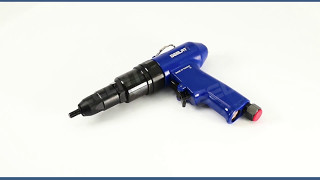

Pneumatic Riveter – M8, 2700 RPM
The rivet tool has a head size of M8 and a freeload speed of 2700 RPMs. The overall length of the tool is 230 mm.
Function
The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A rivet nut is threaded onto the head and inserted into a determined hole. The tool is then activated, collapsing the rivet nut and securing it tightly to the material around it. The setter then spins out of the threaded hole.
Applications
The rivet gun works well for any context in which rivet nuts are needed, such as construction, metal fabrication, the automotive and aeronautics industries, and electronics. The pneumatic function makes the tool especially useful for cases where setting many rivet nuts is required.
Technical Details
| Structure: | Clutch |
|---|---|
| Style: | Handle Exhaust |
| Size: | M8 |
| Compatible Heads: | M3 (D1775369) | M4 (D1775371) | M5 (D1775373) | M6 (D1775375) | M8 (D1775377) | 3/16"(D1775363) | 1/4"(D1775368 |
| Free Load Speed: | 2700 rpm |
| Air Consumption: | 198 L / Min |
| Overall Length: | 230 mm |
| Air Inlet: | P.T 1/4" |
| Threading: | UNC |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Receive $100 For contributing to our community
Pneumatic Riveter - 4mm - Handheld The rivet tool has a 4 millimeter nozzle size, a 90-degree-angle headpiece and a freeload speed of 1600 RPMs. The overall length of the tool is 270 mm, and it utilizes a rear air exhaust. Function The...
Air Rivet Nut Pull Setter – M8 Screw On, 600 RPM The air rivet nut pull setter has a head size of M8 and a freeload speed of 600 RPMs. The overall weight of the tool is 1.1 kg. Function The air rivet nut pull setter is powered via air...
Pneumatic Riveter – 3/8", 450 RPM The rivet tool has a head size of 3/8” and a freeload speed of 450 RPMs. The overall length of the tool is 210 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Pneumatic Riveter – M6, 2700 RPM The rivet tool has a head size of M6 and a freeload speed of 2700 RPMs. The overall length of the tool is 230 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Motorized Electric Ball Valve - 2-Way AC - 1", 3.5N.m, AC 110 V - 3-Point The motorized electric ball valve consists of a 2-Way 1” brass valve, has 3.5N.m operating torque and the actuator requires AC110V power. It also consists of a 3-point...
Pneumatic Riveter – M3, 2700 RPM The rivet tool has a head size of M3 and a freeload speed of 2700 RPMs. The overall length of the tool is 230 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Pneumatic Riveter – M8, 2700 RPM The rivet tool has a head size of M8 and a freeload speed of 2700 RPMs. The overall length of the tool is 230 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
This high quality, powerful commercial blender is all you will need for a large variety of grinding, blending and mixing applications. The blender features a top of the line stainless steel cutting blade and a heavy duty motor for quick and...
Pneumatic Riveter – M8, 450 RPM The rivet tool has a head size of M8 and a freeload speed of 450 RPMs. The overall length of the tool is 210 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Pneumatic Riveter – M4, 700 RPM The rivet tool has a head size of M4 and a freeload speed of 700 RPMs. The overall length of the tool is 200 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Pneumatic Riveter – M3, 700 RPM The rivet tool has a head size of M3 and a freeload speed of 700 RPMs. The overall length of the tool is 200 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Does this Nut Setter specified to work with stainless steel rivet nuts?
Hi Ced, thanks for your question. Unfortunately, this nut setter cannot be used on stainless steel. If you have any other questions or concerns about our products, please do not hesitate to ask.
Can this do stainless steel M8 rivnuts?
Hi Cameron, thanks for your question. Unfortunately, this nut setter cannot be used on stainless steel. If you have any other questions or concerns about our products, please do not hesitate to ask.
Can you get an 8-32 mandrel for this tool?
Hi Jerry, thank you for your interest in our products. Yes, you can get an 8-32 mandrel for the tool. The minimum order quantity is 10 pieces.
Is there a model that will work for 10-32, 8-32 and 6-32?
Hello Brian, yes we do have all those models available. They are listed as 5/16", 1/4" and 3/16". Click the yellow "show all" button a the top right of this page and then click the filters for measurement on the left navigation of the category page.
Does this do more than one size?
Hello Patrick, thank you for your question. Yes this Pneumatic Air Rivet Nut Setter is capable of changing the nut head to a variety of sizes using the same gun. The gun features a quick release head that allows you to quickly changes the size of the nut head. Please contact us to go over all the different size heads that will work with this Pneumatic Air Rivet Nut Setter.
Is the head on the nut setter interchangeable?
Hello Jose, thank you for your question. Yes the head on this nut setter is certainly interchangeable. This gun uses screw on heads and replacement heads can be found in out nut setter head section. The compatible head sizes for this nut pull setter are screw on M3, M4, M5, & M6
Do you guys stock a head for a #10 thread?
To check current stock, please contact the customer support number at the top of the page.
is there ther size mandrell
Hello Michael, thank you for your question. Unfortunately we are not too sure what your question is. The mandrel size that comes with this pneumatic nut setter is 5/16". We offer many different sizes as well.
We require a rivet nut setter for McMaster Carr nos. 93669A120 (thread 10-24) and 93669A210 (thread 8-32). Suggestions?
Hello Gary, thank you for your question. We currently do not offer those part#s, we have all our product listings on the site already. We are frequently updating out inventory and product offerings. Please check back with us in the near future as we might have what you are looking for available.
How do I get a parts breakdown for this item, and is there a model number for this gun.
Hello Tony, thank you for your question. I can certainly provide the parts list and a schematic drawing of the gun. Please email us at sales@deelat.com and we can send that your way no problem.
Where can we purchase this product?
Hello Kyle, thank you for your question. You can purchase our Deelat branded pneumatic Air nut setter directly on our website deelat.com or you can call in and order it over the phone with one of our customer support team members. Deelat branded tools are only available through us.
Is there a left hand thread tool?
Thanks for your interest in our air rivet nut setters, Alan. Unfortunately, we do not have left hand thread tools. If you have any other questions or concerns please do not hesitate to contact us.
Can this nut setter be used with 1/4-20 Rivets?
Hello Ricardo, thank you for your question. Yes all the nut setter models are UNC (Course Threaded). 1/4-20 rivets should be suitable for this model. If you have any other questions or concerns please contact our friendly customer support staff at 1-888-667-5776.
What does it cost?
Hi, Joseph. The price is $261.90 plus shipping. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
