Deep Well Pump (Submersible)- 200' 1 9/16" Max. Head Height - 1584 GPH
Open For Business & Shipping Daily During Covid-19
Deep Well Pump (Submersible) - 200' 1 9/16" Max. Head Height - 1584 GPH

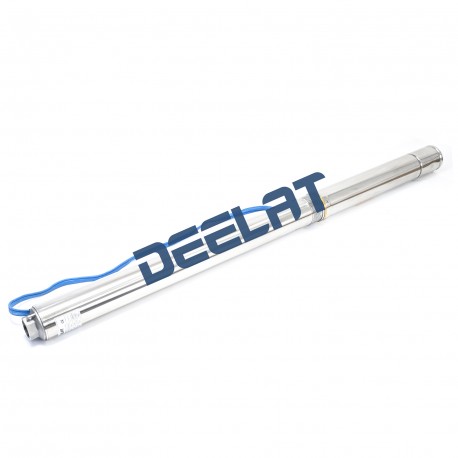

The deep well submersible water pump is single phase with 1 horsepower. The water pump is constructed out of corrosion-resistant materials.
The open well submersible pump is placed inside a well casing. The pump uses a centrifugal pump and impellers to pull water into the intake, using water pressure to push it through pipes to a desired location.
The open well submersible pump and similar types of pumps can be used in wells, fountains, sewer systems, and any context where water needs to be pulled to the surface. The pump features allow it to be extremely versatile.
Download Spec sheetSKU #D1156358
|Certifications:||SGS, TUV, ISO, CE|
|Max Output Power:||1 HP|
|Outlet Size:||2 inch|
|Voltage:||110 V/60 Hz|
|Cable Length:||4' 11 1/16"|
|Maximum Discharge Flow:||1584 GPH|
|Flow/ Head Performance Curve|
|Head Height @ 0 GPM:||200' 1 9/16"|
|Head Height @ 2 GPM:||196' 10 7/32"|
|Head Height @ 7 GPM:||190' 3 15/32"|
|Head Height @ 11 GPM:||180' 5 11/32"|
|Head Height @ 15 GPM:||160' 9 1/8"|
|Head Height @ 18 GPM:||144' 4 9/32"|
