Wall Heating Panel

- 60 x 100 x 2.2cm - 450W, 110V - Glass

Product Video

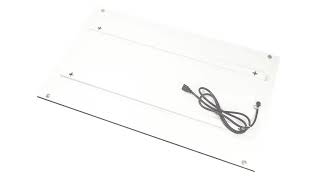

Radiant Electric Wall Heating Panel - 60x100x2.2cm - 450W, 110V - Glass
Open For Business & Shipping Daily During Covid-19
Buy this product
Select filters above OR


View All Products

Price
$21699
Quantity


Payment Methods

Free shipping on
orders over $525

Payment Methods
Calculate Shipping

General Description

Wall Heating Panel - 60 x 100 x 2.2cm - 450W, 110V - Glass


The radiant electric wall heating panel has dimensions of 60 x 100 x 2.2 cm and is 450W. The unit is 110V with a carbon crystal heating element and is frameless with the front surface made out of black glass. The surface temperature reaches 90-110°C.

Function
The radiant panel has a heating element that transfers heat to a room by infrared heat radiation and is fortified with an aluminum sheet that reflects heat into the room. The unit is installed on a wall or ceiling using anchored screws and plugs into a wall outlet using a standard 1.9-meter cable.

Applications
The radiant panel is intended to help reduce heating costs in bedrooms, offices, basements, or any area inside a home that stays cold and needs an efficient heating system.

Technical Details

Size: 60 x 100 x 2.2 cm
Thickness: 2.2 cm
Voltage: 110 V
Power: 450 W
Weight: 9.4 kg
Heat Capacity: 40 W/ m3
Approximate Heating Area: 3.75 m²
Heating Element: Carbon Crystal
Surface Temperature: 90-110°C
Electric Conversion Efficiency: 98%
Life Expectancy: 100,000 H
Front Surface: White or Black Glass
Frame: Frameless
Ingress Protection Ration: IP54 (Standard)
Over-heat Protection: Yes
Show More Technical Specifications
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Jack F.
Feb 12, 2018

Can this heater be wired to a switch and thermostat?

Hello Jack, thank you for your question. Yes our radiant electric heating panel can certainly be wired to a thermostat. We actually offer a thermostat specifically designed for our heating panels. Please look at our SKU# D1775509

Reply Deelat Industrial on Feb 13, 2018
kim b.
Nov 23, 2018

What are the difference with glass vs non glass ,or which one is better ?

Hello Kim, thank you for your question. There are 2 main differences between glass panels and non glass panels. The first difference is heating time, the glass heating panels take longer to reach heating temperatures whereas the non glass heats up much quicker. The other difference is the glass heating panels can be installed pretty much anywhere including humid areas such as a bathroom whereas non glass should not be installed in humid areas.

Reply Deelat Industrial on Nov 26, 2018
Henry P.
Jun 14, 2020

Can the D1160513 panels be used for a sauna?

Yes, any of our wall heating panels could be used for a sauna.

Reply Deelat Industrial on Jun 17, 2020
Claudia A.
Dec 11, 2017

Can it cause a fire or is it highly flammable?

Hello Claudia, thank you for your question. The radiant heating panel itself is not flammable. Any kind of product that is an electric heater can cause a fire if it is used improperly or altered in anyway. The biggest fire risk is how the radiant wall heating panel is wired during installation. The good thing about this D1160513 heating panel is that it's "plug n play", so it already comes with a 110V or 220V plug (depending on your country). Sll you have to do is hang it with the anchor screws provided and plug it in.

Reply Deelat Industrial on Dec 15, 2017
Dean m.
Dec 18, 2017

Where is it made? Will it work with US power and outlets?

Hello Dean, Our radiant wall heating panels are made in Taiwan; however, they will certainly work with US power. These heating panels come with a standard US 110V plug as seen on the photos. The wall heating panels are what we consider as plug and play. You securely anchor the panel onto a wall, plug it in, and you are good to go. The panel will automatically begin to heat when it is plugged in.

Reply Deelat Industrial on Dec 20, 2017
Kristen K.
Apr 15, 2018

Hi there, Please will you tell me if the panels be mounted to the ceiling, and if so what would they need to be connected to (I'm guessing plasterboard panels won't hold the weight). Thanks, Kristen

Hello Kristen, thank you for your question. Our wall heating panels can certainly be installed on the selling using the anchor screws provided with the heating panel. You can anchor it directly onto the drywall. If you would like detailed install instructions, please email us at sales@deelat.com and we can send you a the install instructions in a PDF file.

Reply Deelat Industrial on Apr 17, 2018
